ICS series high precision electronic belt scale is an ideal equipment for continuous measurement of bulk materials in belt conveying system. It has the advantages of simple structure, accurate measurement, convenient operation, small maintenance, easy to communicate with the host computer and so on. It is widely used in electric power, metallurgy, coal, chemical, building materials, port and other industries.

1.Product details

ICS series high precision electronic belt scale is an ideal equipment for continuous measurement of bulk materials in belt conveying system. It has the advantages of simple structure, accurate measurement, convenient operation, small maintenance, easy to communicate with the host computer and so on. It is widely used in electric power, metallurgy, coal, chemical, building materials, port and other industries.

2.Adaptability

General environment and acid, alkali, salt and other corrosive environment;

Common belt conveyor, skirt belt conveyor, hanging belt machine and air cushion belt conveyor;

Belt machine Angle: 0° ~ 18°;

Belt bandwidth: 400-2200mm;

Belt running speed: 0.01 ~ 4.0m/s;

Belt conveyor inlet and outlet center distance ≥1.2m.

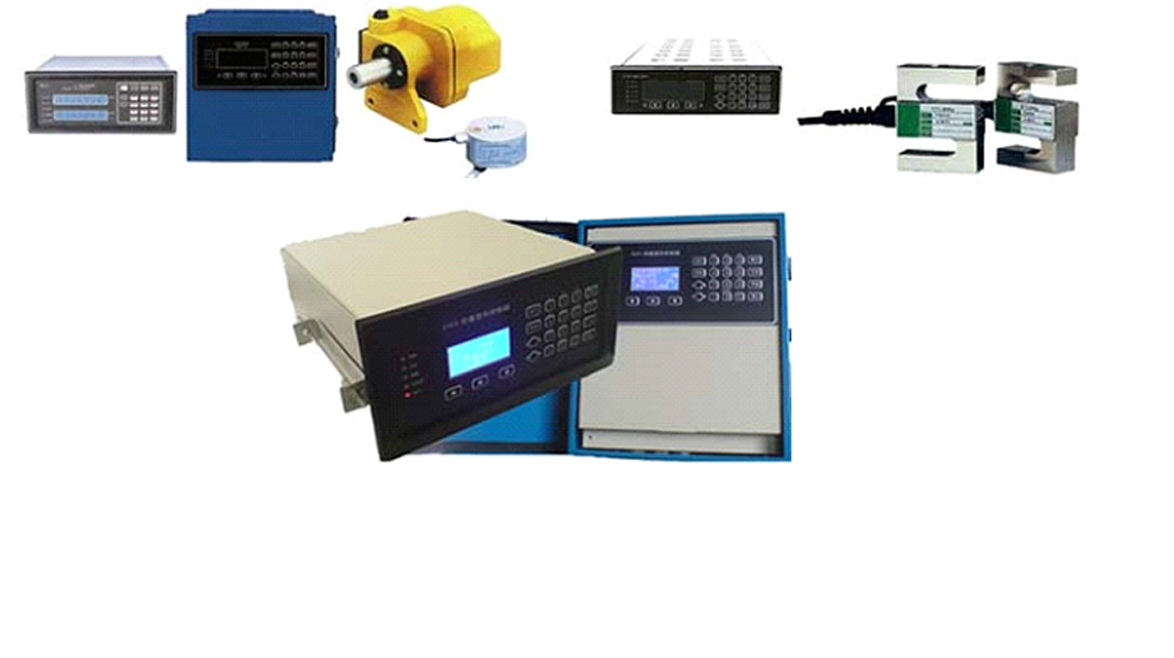

3.Basic composition

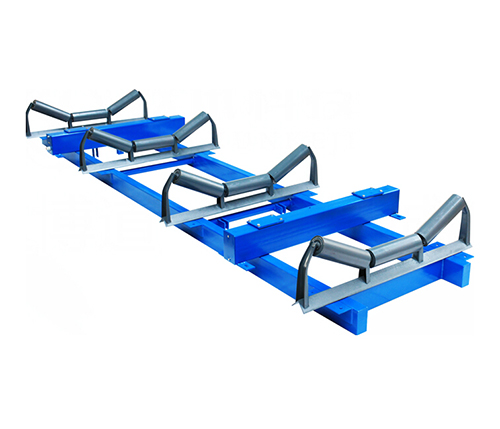

Weighing bridge

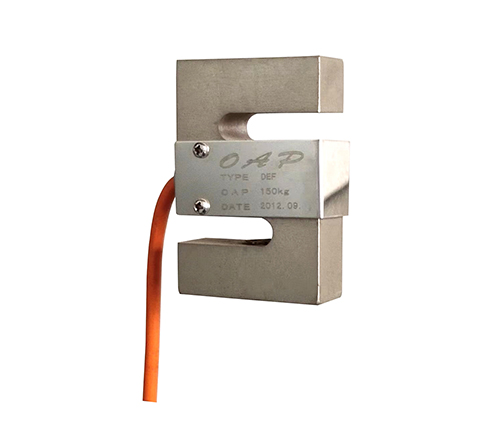

Weighing sensor

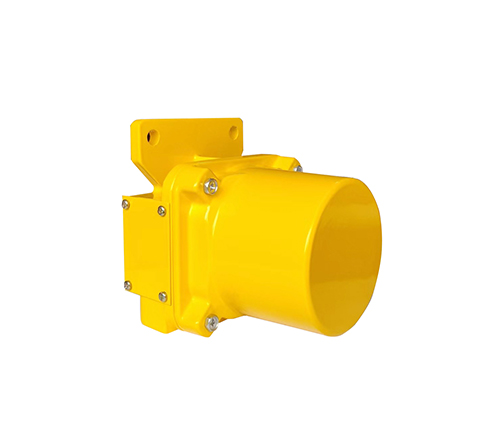

Velocity sensor

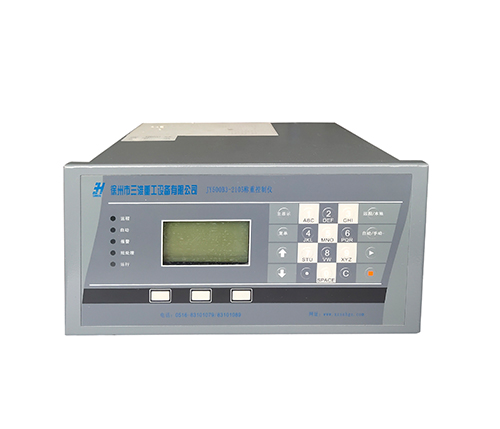

Weighing display instrument

4.Working principle

When the material passes through, the weight of the material on the metering section acts on the weighing sensor, generating A MV signal proportional to the load of the dry belt. At the same time, the speed sensor provides a pulse signal proportional to the speed of the belt. The two signals enter the weighing instrument at the same time, and the two signals are amplified, filtered and converted into A/D into the CPU. Then the instantaneous flow rate and accumulated weight of the material are displayed on the display panel.

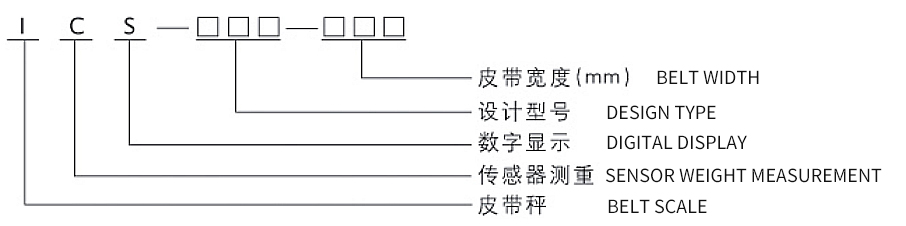

5.Product model and meaning

6. Structural characteristics

Simple structure, less force transfer links, simple and convenient installation;

Unique rectangular lever, good rigidity, invisible change;

Use like rubber trunnion support, anti-corrosion, moisture-proof, anti-vibration;

Anti-lateral force, anti-horizontal force, effectively reduce the belt deviation and blanking load on the impact of the system tip;

The two weighing sensors are less affected by biased load, stable and high precision;

17A has a wide weighing area and four sets of idlers minimize the impact of belt on weighing.

Type 17B double roller, short weighing area, suitable for short feeding distance belt conveyor.
