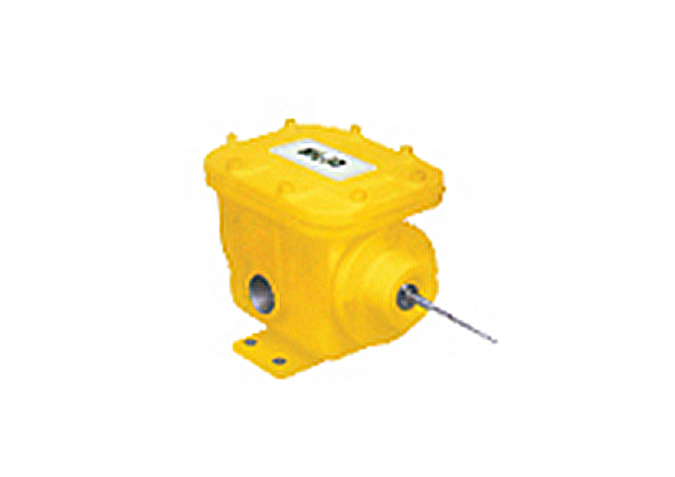

Tear switches are mounted in pairs on either side of the belt and are connected by two sections of vinyl clad aviation wire rope. One end of the rope is permanently attached to the support bracket and the other end is attached to a spring ball on the tear switch. The two pieces of string form a closed loop under the belt. A fault is detected when an object or torn belt is suspended and sweeps off one or both cords. It pulls the spring ball out of the base because the cord is detached, causing two microswitches to alarm or shut off the conveyor.

1. Product details

Tear switches are mounted in pairs on either side of the belt and are connected by two sections of vinyl clad aviation wire rope. One end of the rope is permanently attached to the support bracket and the other end is attached to a spring ball on the tear switch. The two pieces of string form a closed loop under the belt. A fault is detected when an object or torn belt is suspended and sweeps off one or both cords. It pulls the spring ball out of the base because the cord is detached, causing two microswitches to alarm or shut off the conveyor.

2.Performance characteristics

Simple and firm structure, no maintenance

Integral cover plate, easy to connect

Cast aluminum housing with protective coating

Large capacity micro contact

Only 0.9kg of force is needed to trigger the switch

Large contact capacity: 125,250 or 480V/21A

The switch can be connected to normally open or normally closed as required

Various protection levels are suitable for explosion-proof and all kinds of special environment
