The use of low speed belt speed measurement, specific application in small conveying, batching system, power supply voltage 15VDC, small structure, flexible operation, maintenance free.

1.PC-205Velocity sensor

The use of low speed belt speed measurement, specific application in small conveying, batching system, power supply voltage 15VDC, small structure, flexible operation, maintenance free.

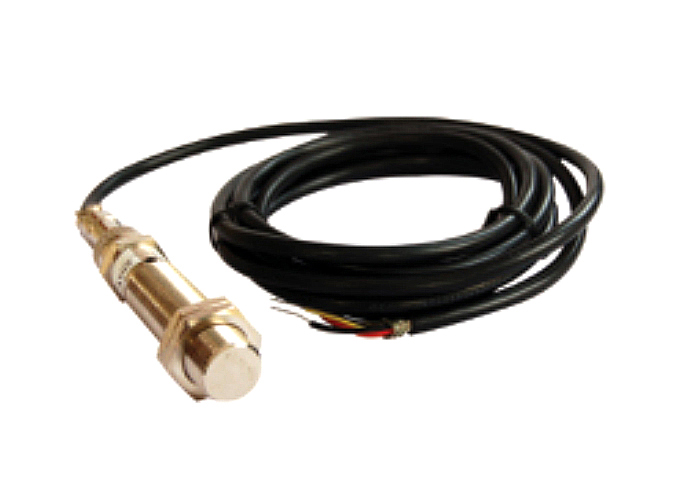

2.CC-M12/M16Mouth gear speed sensor

Induction of iron and metal objects, accurate measurement of gear speed, stable output, suitable for a wide range of voltage, and output voltage amplitude independent of speed; Specific applications are divided into camshaft position sensor, crankshaft position sensor, wheel speed sensor, etc.

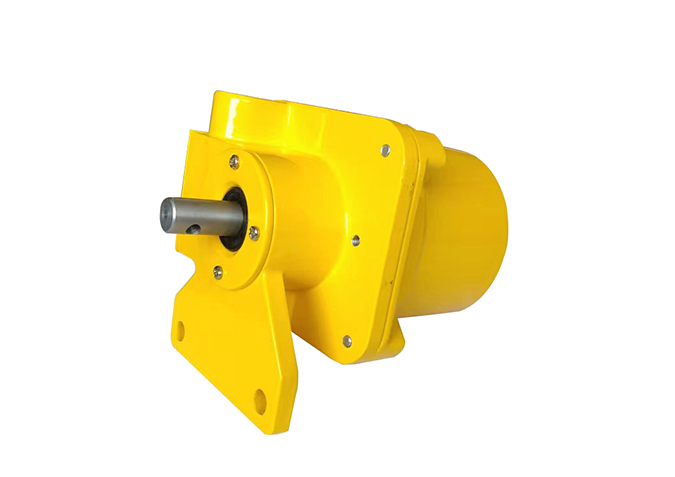

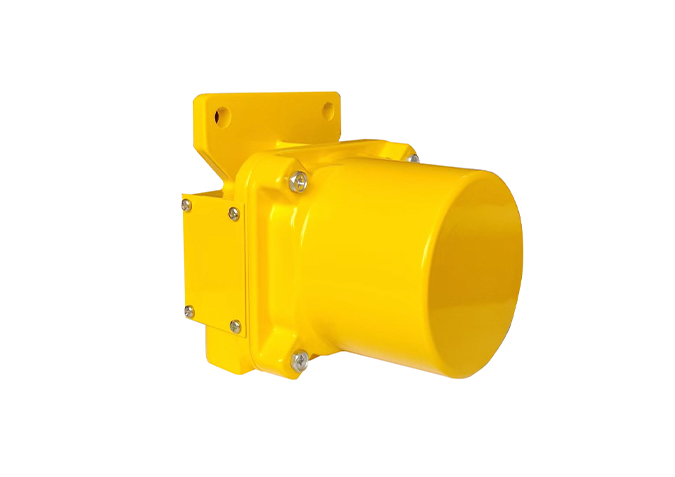

3.60-12B/C/D/XVelocity sensor

Connected to the special speed measuring roller, can eliminate the usual speed measuring device between the friction wheel and the belt due to slip error.

Cast aluminum shell, with good shielding, good sealing performance, suitable for outdoor installation of carbon-free brush type pulse generator, no adjustment, calibration, no maintenance: the latest soft connection technology, more effectively ensure the speed measurement accuracy, and greatly improve the service life of the equipment.

Speed measuring range: 60-12C/D type; 0.6 ~ 4.0 m/s

Speed measuring range: Model 60-12B/X; 01-1.0 m/s
